TCB-100A Bright White Ink of High Hiding Power

来源: 发布时间:2019-04-17

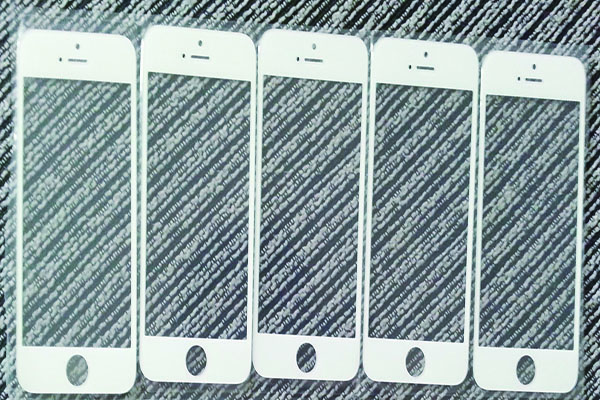

This printing ink is two component glass ink, meeting the high requirements of the touch screen industry. The cured film has various advantages, such as good adhesion, water resistance, chemical resistance, printability, surface hardness and abradability.

Scope of applications: common glass, tempered glass.

Operation process: Add 1 portion of the TCBT-100B hardener into 10 portions of this ink and dilute the mixture with moderate thinner, then print with the 350~420-mesh halftone.

First coating: baking at 130℃ for 8 min;     Second coating: baking at 130℃ for 8 min;

Third coating: baking at 130℃ for 8 min;    Last coating: baking at 130~150℃ for 15~20 min.

Technichal parameters are shown in the following table.



Test Items

Test Methods

Test Results

Fineness

GB/T1724-79

8μm

Surface tension

Application criterion of the dyne pen

32dyn/cm

Ultrasonic washing

Ordinary detergent, 65, 2hr

Non-foaming;non-wrinkling;non-discoloring;cross-cut adhesion test, 100%

Boiling resistance

Soaking in 100 deionized water for two hours

Non-foaming;non-wrinkling;non-discoloring;cross-cut adhesion test, 100%

High and low temperature humidity and heat cycle

80, 95% RH (8hr); -40(2hr); ten cycles in total



Non-foaming;non-wrinkling;non-discoloring;cross-cut adhesion test, 100%

Hardness

Mitsubishi Pencil at an angle of 45 degrees, 500-gram force, measuring at different locations for 3 times

2H

Adhesion

Cutting 100 grids, 3M gummed paper, continuously pulling off for 5 times

cross-cut adhesion test, 100%

Surface resistance

Testing surface resistance at 5 locations (80%RH)

1010Ohm

Acid resistance

Soaking in 25 5% H2SO4 solution for two hours

Non-foaming;non-wrinkling;non-discoloring;cross-cut adhesion test, 100%

Alkali resistance

Soaking in 25 5% NaOH solution for two hours

Non-foaming;non-wrinkling;non-discoloring;cross-cut adhesion test, 100%

Ethanol tolerance

Tester loaded with 200 grams; using the winsey, dipped with over 99% alcohol, to rub back and forth for 100 times

Colorfast; not tarnishing

Solvent (Acetone) resistance

Tester loaded with 200 grams; using the winsey, dipped with chemically pure acetone, to rub back and forth for 50 times

① Colorfast; not tarnishing

Performance features:

Its obvious predominance lies in environmental compliance, good surface tension, good thixotropic structure, medium drying speed and weak corrosion.

Usage:

① Add 1 portion of the matching TCB-100B hardener into 10 portions of the ink and then fully stir the mixture with moderate thinner before printing.

② The recommended baking temperature is 130℃ and the recommended baking time is 15 min. On other conditions, please confirm the feasibility in advance in order not to affect product quality.

③ During the multilayer overprint, in order to ensure the quality, the first coating solidifies after baking at 130℃ for 8 min; the second coating solidifies after baking at 130℃ for 8 min; the last coating solidifies after baking at 130~150 ℃ for 15~20 min.

④ The selection of the thinner types and the thinner dosage depend entirely on the adjustment of printing mesh number, environmental condition and printing effect.

Storage condition:

     Before and after using this series of ink, the ink containers should be kept completely sealed in cool and ventilated places to avoid exposure to open fire and high temperature.

Guarantee period:

    The guarantee period is one year since the production date. Beyond the deadline, please reconfirm the usability.

Note ①: All the above tolerance test data, derived from our test results, is for your reference only and not listed as guarantee value.

Note ②: This series of ink meets the standard of RoHS2.0, REACH, Halogen and the total test data concerning eight heavy metals.
